Feature
Ultra-narrow filter for blood clinical chemistry analyzer
Instructions

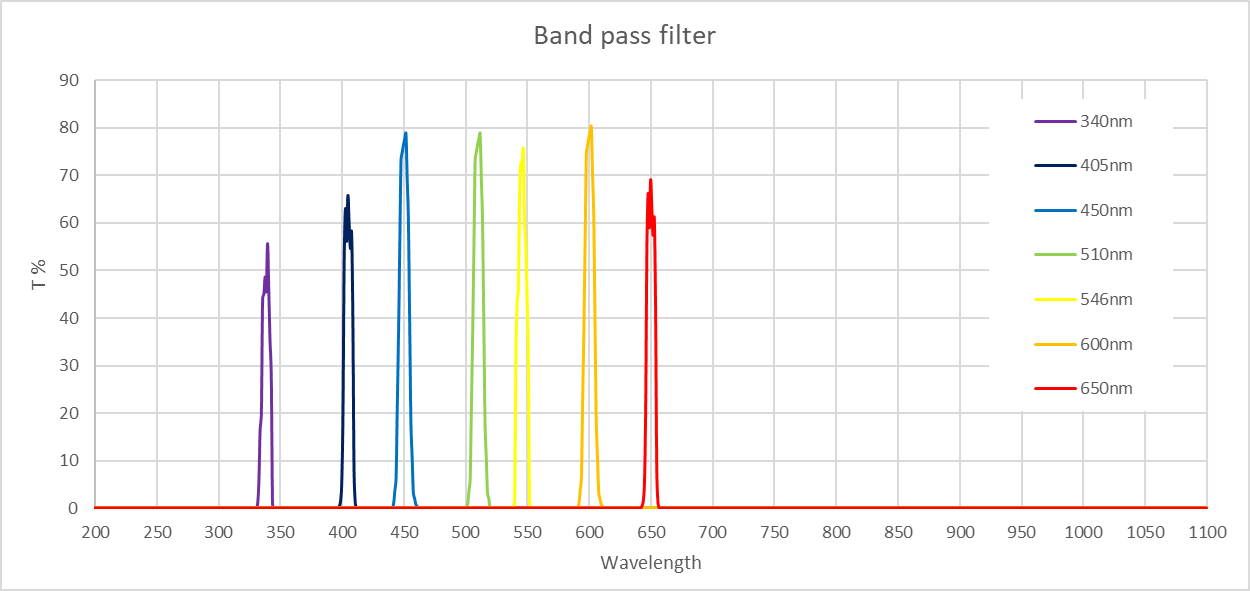

Wave band  Specification

340nm Filter
Centre Wavelength =   340 ± 2 nm

Band width = 10 ± 2   nm

Tpk% > 50%

Block Band T <   0.001%

Blocking:Average   OD5@300-1000nm

405nm Filter
Centre Wavelength =   405 ± 2 nm

Band width = 10 ± 2   nm

Tpk% > 70%

Block Band T <   0.001%

Blocking:Average   OD5@300-1000nm

450nm Filter
Centre Wavelength =   450 ± 2 nm

Band width = 10 ± 2   nm

Tpk% > 70%

Block Band T <   0.001%

Blocking:Average   OD5@300-1000nm

510nm Filter
Centre Wavelength =   510 ± 2 nm

Band width = 10 ± 2   nm

Tpk% > 70%

Block Band T <   0.001%

Blocking:Average   OD5@300-1000nm

546nm Filter
Centre Wavelength =   546 ± 2 nm

Band width = 10 ± 2   nm

Tpk% > 70%

Block Band T <   0.001%

Blocking:Average   OD5@300-1000nm

600nm Filter
Centre Wavelength =   600 ± 2 nm

Band width = 10 ± 2   nm

Tpk% > 70%

Block Band T <   0.001%

Blocking:Average   OD5@300-1000nm

650nm Filter
Centre Wavelength =   650 ± 2 nm

Band width = 10 ± 2   nm

Tpk% > 70%

Block Band T <   0.001%

Blocking:Average   OD5@300-1000nm

700nm Filter
Centre Wavelength   =700±2nm

Band width = 10 ± 2   nm

Tp>70%

Block Band T <   0.001%

Blocking:Average   OD5@300-1000nm
